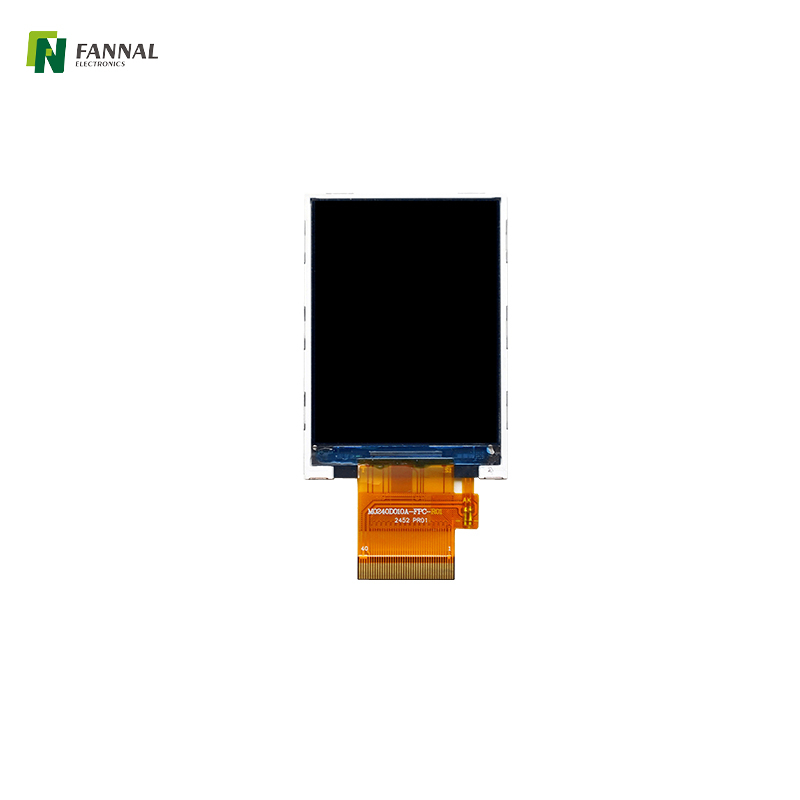

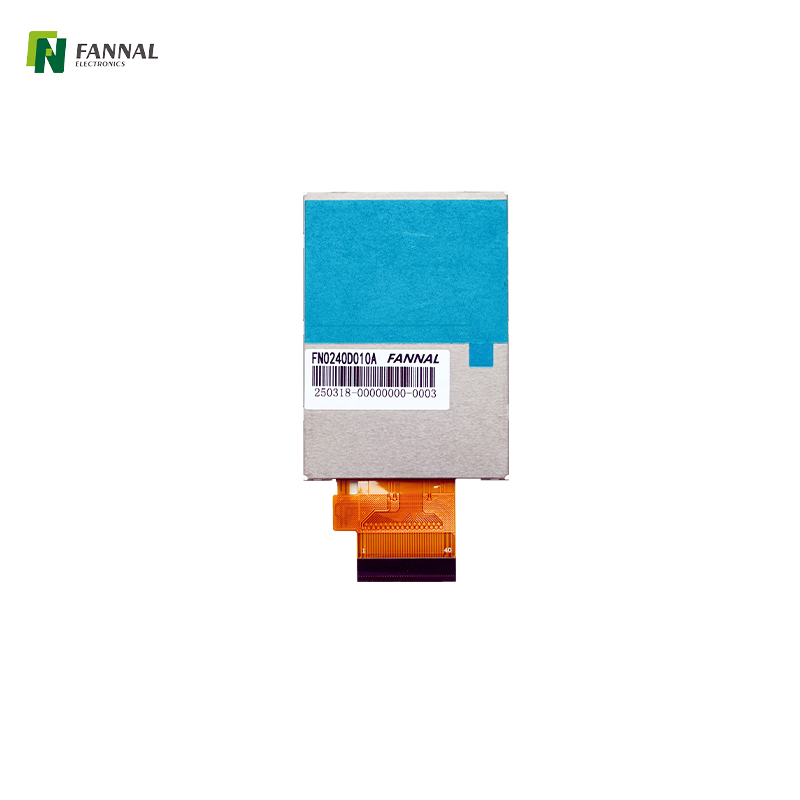

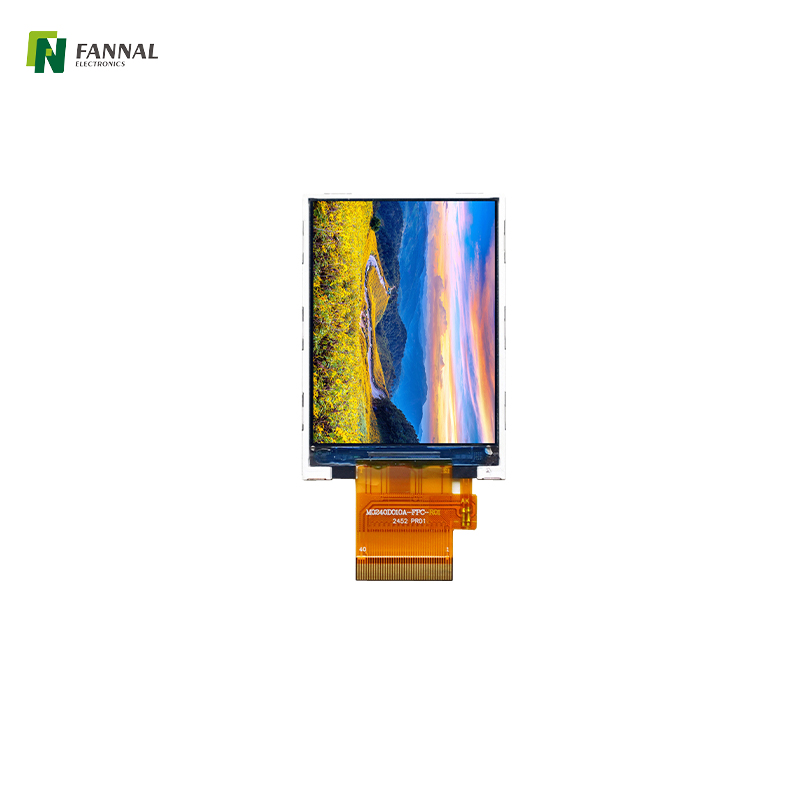

2.4-Inch TFT Display 550Typ luminance MCU/GB 24-bit interface

Model:
FN0240D010B
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
240×480
Direction:
ALL
Interface:
MCU/GB 24-bit
Brightness(cd/m²):
550
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

2.4 inch TFT display MCU/GB 24-bit interface high-resolution 2.4 inch TFT display industrial 2.4 inch TFT display

Product Features

Product Drawing

Specification

Add Ons

Product Application

详情页IPS工控

Discover the Power of Compact Brilliance with Our 2.4-Inch TFT Display

Looking for a display that combines exceptional performance with a small form factor? Our 2.4-inch TFT display is the perfect solution for your next project. With stunning visuals and unmatched durability, it’s designed to meet the needs of modern applications across industries.

Why Choose This Display?

Vivid Clarity: Experience sharp and vibrant visuals with a 240x480 resolution and an impressive 550 Typ luminance—perfect for any lighting condition.
Versatile Connectivity: Features MCU/GB 24-bit interface for seamless integration into your systems.
Built for All Conditions: Operates flawlessly in temperatures ranging from -20°C to +70°C, ensuring reliability in the toughest environments.
Compact and Efficient: Ideal for applications where space-saving is essential without compromising on quality.

FN0240D010B drawing

General Specifications：

LCD size(inch):	2.4 (Diagonal)
Resolution:	240(H)×480(V)
Active Area(mm):	48.96(H)×36.72(V)
Module Size(mm):	42.72(W)×60.26(H)×2.27(D)
Display Mode(mm):	Normally Black
Interface:	MCU/GB 24bit
View Direction:	ALL
Luminance(cd/m2):	550(Typ.)
Operating Temperature(°C):	-20~+70
Storage Temperature(°C):	-30~+80

Interface:

Pin NO.	SYMBOL
1	GND
2	VCI
3	VCI
4	IM2
5	IM1
6	IMO
7	RESET
8	CS
9	DC(SPI SCK)
10	WR(SPI RS)
11	RD
12	VSYNC
13	HSYNC
14	ENBLE
15	DOTCLK
16	SDA
17	DBO
18	DB1
19	DB2
20	DB3
21	DB4
22	DB5
23	DB6
24	DB7
25	DB8
26	DB9
27	DB10
28	DB11
29	DB12
30	DB13
31	DB14
32	DB15
33	DB16
34	DB17
35	SDO
36	LEDA
37	LEDK1
38	LEDK2
39	LEDK3
40	LEDK4

CTP

Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board

We can provide complete accessories, including backlight board, AD Board and wire sets.

As the demand for custom projects continues to rise, the bar-type TFT market is expanding rapidly. Our bar-type TFT solution is ideally suited for a variety of applications, including industrial, automotive, medical, home appliances, and maritime sectors.
