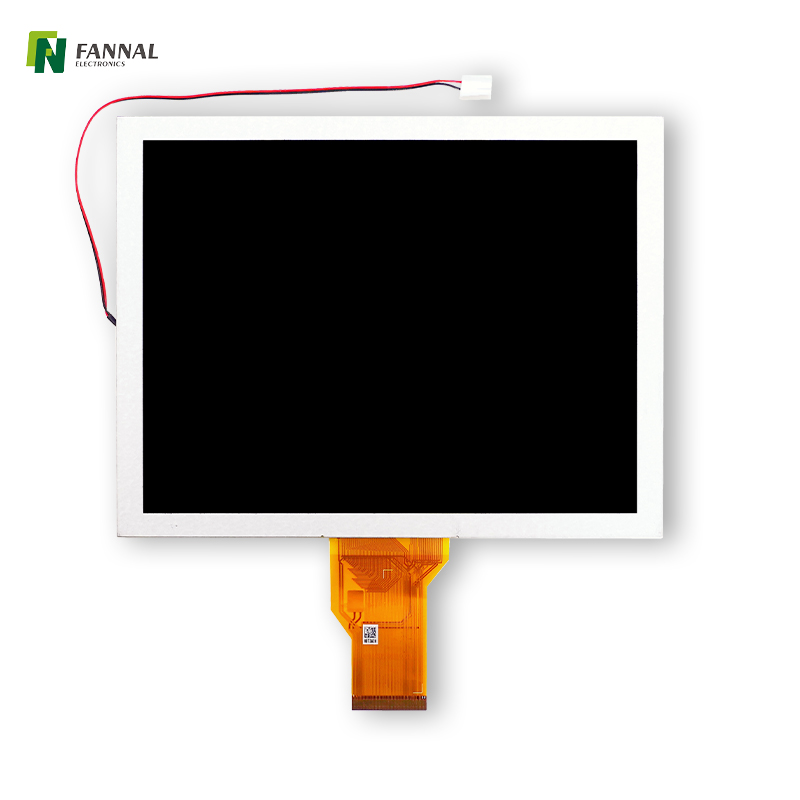

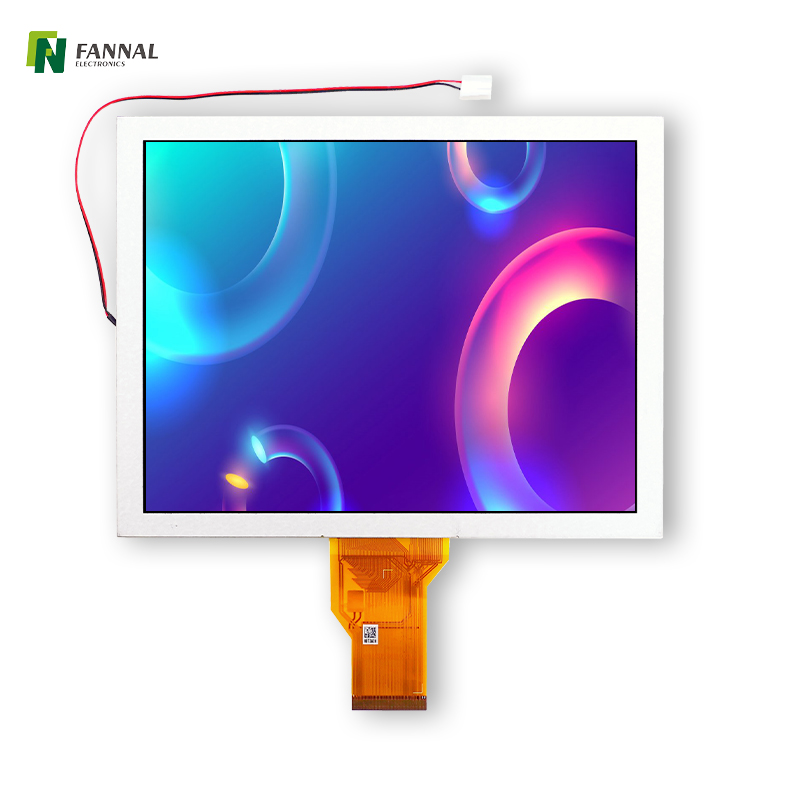

8.0 Inch High-Resolution TFT Screen, 800x600 Display

Model:
FN0800D009A
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
800×600
Direction:
ALL
Interface:
RGB
Brightness(cd/m²):
300
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

800x600 TFT display high-resolution 800x600 TFT display industrial 800x600 TFT display portable 800x600 TFT display customizable 800x600 TFT display

Product Features

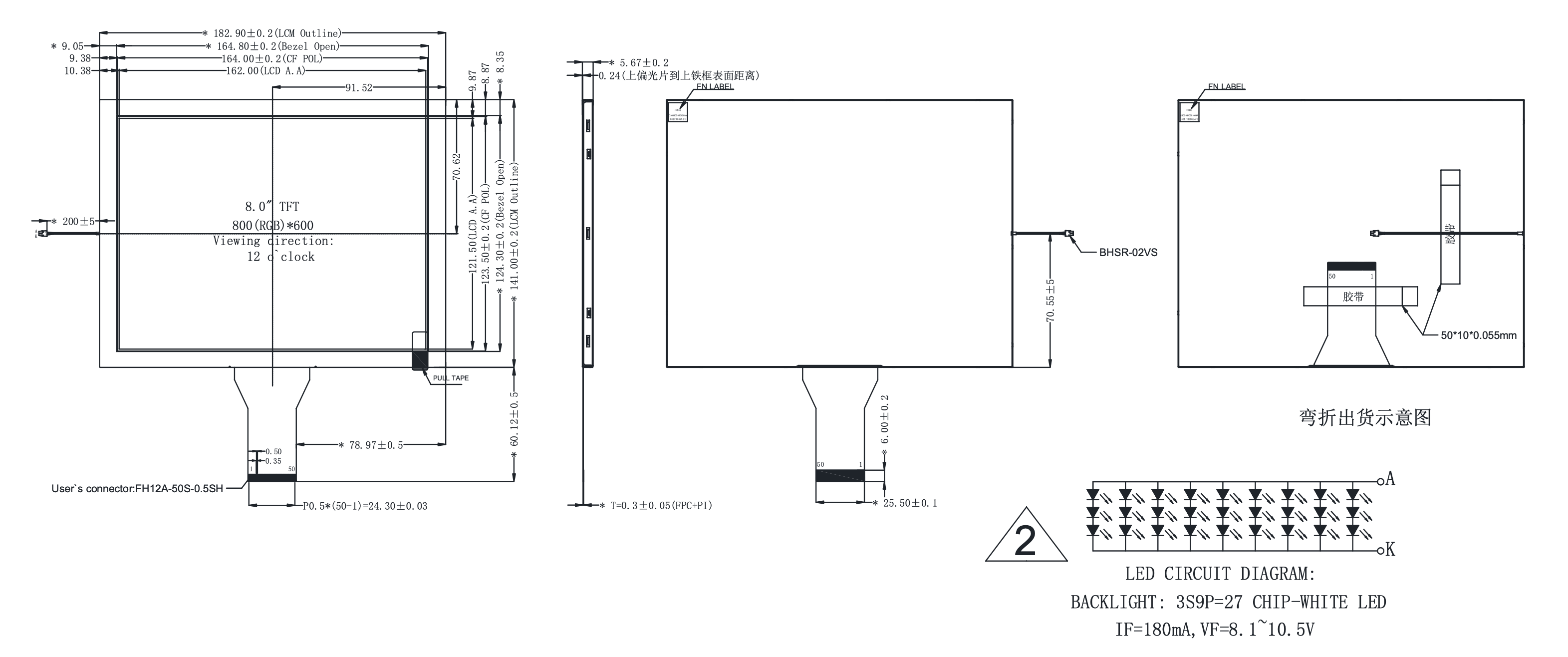

Product Drawing

Specification

Add Ons

Product Application

详情页宽温

8.0 Inch High-Resolution TFT Screen, 800x600 Display

This TFT screen combines functionality with a sleek design, making it suitable for a wide range of uses.

Features:

High Clarity: The 800x600 resolution offers sharp and clear images, making it ideal for various applications.
Vibrant Colors: TFT technology provides excellent color reproduction and wide viewing angles.
Compact Design: Perfect for devices where space is limited, such as tablets, industrial equipment, or portable displays.

Applications:

Consumer Electronics: Tablets, digital photo frames, and portable gaming devices.
Industrial Use: Control panels, machine interfaces, and monitoring systems.
Education: Interactive displays for teaching and presentations.

fn0800D009A

General Specifications：

LCD size(inch):	8.0 (Diagonal)
Resolution:	800(H)×600(V)
Pixel Pitch:	0.2025(H) x 0.2025 (V)
Active Area(mm):	162.0(H)×121.5(V)
Module Size(mm):	182.9(W)×141.0(H)×5.67(D)
Display Mode(mm):	IPS,NB
Interface:	RGB
View Direction:	ALL

Interface:

No.	SYMBOL	I/O	Description
1-4	NC	-	No connection
5	GND	P	Ground
6	VCOM	P	Common voltage
7	VDD	-	Power for Digital circuit
8	MODE	I	DE/SYNC mode select
9	DE	I	Data Input Enable
10	VS	P	Vertical Sync Input
11	HS	I	Horizontal Sync Input
12-19	B7-B0	I	Blue data
20-27	G7-G0	P	Green data
28-35	R7-R0	I	Red data
36	GND	I	Ground
37	DCLK	P	Sample clock
38	GND	I	Ground
39	L/R	I	Right/ left selection
40	U/D	P	Up/down selection
41	VGH	I	Gate ON voltage
42	VGL	I	Gate OFF voltage
43	AVDD	P	Power for Analog circuit
44	RESET	I	Global reset pin.
45	NC	I	No connection
46	VCOM	P	Common voltage
47	DITHB	-	Dithering function
48	GND	-	Ground
49	NC	P	No connection
50	NC	-	No connection

Electrical Characteristics:

Parameter	Symbol	Min.	Typ.	Max.	Unit
Forward voltage	VF	8.1	9.0	10.5	V
Forward current	IF	--	180	--	mA
LED Life Time	--	20000	30000	--	Hrs

Customization

CTP

Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board

We can provide complete accessories, including backlight board, AD Board and wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
