TFT Display Failure Analysis and Troubleshooting Guide

TFT display failures in industrial and embedded systems often appear complex, but more than 90% of issues fall into a few repeatable categories: signal & driver problems, optical & brightness abnormalities, and environmental & reliability factors.

This guide provides a practical fault-classification and step-by-step diagnosis method for R&D engineers, hardware designers, and technical buyers working with TFT LCD and touch display modules.

1. Signal & Driver Related Abnormalities

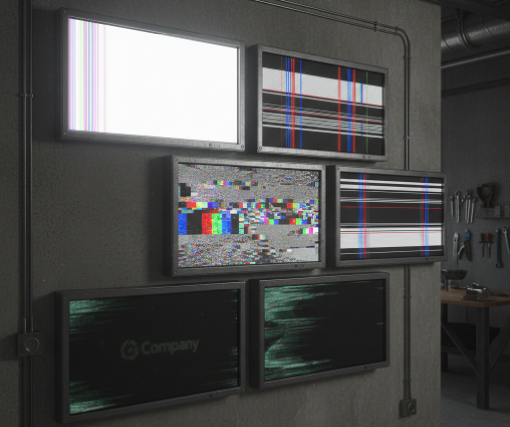

Typical Symptoms

• White screen / black screen

• Color noise or mosaic pattern

• Vertical or horizontal lines

• Flickering or unstable image

• Image retention or ghosting

Common Root Causes

• FPC cable poor contact
  Hot‑plugging or inserting the cable under power frequently damages the interface or burns the driver IC.

• IC or FPC bonding defects
  COF / ACF bonding failures cause partial or complete signal loss.

• Unstable supply voltage or current
  Abnormal AVDD, VGH, VGL, or logic voltage directly affects panel driving.

• Incorrect timing or initialization parameters
  Especially for MIPI interfaces: wrong porch, clock, or missing init commands often cause “backlight on, no image”.

• EMI interference
  Strong electromagnetic noise can induce flicker, data corruption, or intermittent black/white screens.

Diagnostic & Solutions

• Power off before reconnecting the FPC. Inspect connectors for dust, oxidation, or deformation.

• Cross‑test with another panel or mainboard to isolate panel vs. host issues.

• Measure all panel power rails and compare with panel datasheet limits.

• Verify timing configuration and initialization sequence, especially for MIPI DSI.

• Identify and suppress interference sources; optimize grounding, shielding, and layout.

2. Brightness & Optical Abnormalities

Typical Symptoms

• Insufficient or excessive brightness

• Uneven brightness or mura

• Light leakage on edges or corners

• Color shift (blue/red tint)

• Washed‑out white or gray image

• Abnormal grayscale or contrast

Common Root Causes

• Incorrect backlight current setting
  Over‑current causes over‑brightness and aging; under‑current leads to dim image.

• LED aging and luminance decay
  Standard backlight lifetime is typically ~15,000 hours before visible degradation.

• Non‑uniform light guide or diffuser structure
  Mechanical stress or poor optical design leads to bright and dark areas.

• Defective optical bonding
  OCA bubbles, delamination, or poor degassing cause haze and whitening.

• Improper light‑blocking adhesive design
  Misalignment or insufficient overlap results in edge light leakage.

• Incorrect material selection
  Polarizers, LEDs, and films with mismatched spectra cause color deviation.

• Wrong gamma or color temperature configuration
  Leads to incorrect grayscale and abnormal contrast.

Diagnostic & Solutions

• Measure backlight voltage and current; adjust driver parameters to target specification.

• Evaluate lifetime requirements early in project definition to avoid premature brightness decay.

• Optimize optical stack and mechanical structure; standardize assembly processes.

• Use qualified bonding processes and define clear acceptance criteria.

• Validate gamma curve and color temperature configuration in system firmware.

3. Environmental & Reliability Abnormalities

Typical Symptoms

• No start or slow response at low temperature

• Black screen or yellowing at high temperature

• Fogging or condensation inside module

• Long‑term color shift or brightness decay

Common Root Causes

• Operating outside specified temperature range
  Liquid crystal response degrades rapidly beyond rated limits.

• UV exposure and moisture ingress
  Causes material aging, yellowing, and optical degradation.

• Insufficient sealing and protection
  Poor dust and moisture resistance leads to internal contamination and corrosion.

Diagnostic & Solutions

• Select panels rated for the full operating temperature range of the application
  (industrial: −20 °C to 70 °C, wide‑temperature: −30 °C to 85 °C, extreme applications below −40 °C require special LC formulation).

• Use UV‑resistant materials and optical filters to reduce radiation‑induced aging.

• Improve enclosure sealing, gasket design, and moisture control in assembly.

Conclusion

Most TFT display failures originate from a limited number of electrical, optical, and environmental mechanisms. By classifying the symptom first, then systematically verifying the interface, power, optical stack, and environmental limits, engineers can eliminate the majority of abnormal display issues efficiently.

This checklist‑style troubleshooting method is suitable for:

• New product bring‑up

• Field failure analysis

• Supplier evaluation

• Incoming inspection and quality audits

FAQ

Q1. How can I distinguish panel failure from mainboard or driver failure?

Cross-testing is the fastest method. Connect the panel to a known-good controller, or connect a known-good panel to the same mainboard. If the symptom moves with the panel, the failure is panel-side; if it remains on the system, the root cause is usually timing, power, or driver configuration.

Q2. Why does the backlight turn on but no image is displayed?

This usually indicates that the backlight circuit is working but the display interface or initialization sequence is incorrect. Common causes include missing initialization commands, incorrect lane configuration in MIPI DSI, or logic voltage not reaching the panel driver.

Q3. What is the most common cause of intermittent flicker in industrial systems?

Intermittent flicker is most often related to unstable power rails, ground noise, or EMI coupling into the interface lines. Cable routing, grounding topology, and switching power supply ripple are typical contributors.

Q4. Why does condensation appear inside the display after temperature cycling?

Condensation indicates that moisture has entered the module enclosure. During temperature drops, trapped humidity condenses on internal optical surfaces. This usually points to insufficient sealing, gasket design, or material permeability.

Q5. When should a display issue be considered a design-stage risk rather than a supplier defect?

If the failure correlates strongly with system environment, enclosure structure, power architecture, or firmware timing, it should be treated as a system-level design risk. Pure supplier defects usually reproduce consistently across different systems and operating conditions.
