Why Are LCD Display Lead Times So Long?

Quick Answer:

Display lead times are long mainly due to complex multi-component supply, precision manufacturing processes, structured production scheduling, upstream material constraints, and incomplete project validation.

In custom display projects, even a single material delay, process bottleneck, or scheduling disruption can impact the entire delivery timeline. Stable lead time depends on early planning, supply chain coordination, and controlled production execution.

In the manufacturing industry, lead time is always a sensitive topic. We often hear the same question from customers:

“How long will this display take?”

But in reality, by the time this question is asked, the timeline is often already tight.

The truth is—no manufacturer wants delays. Every factory aims for smooth and predictable delivery. But in the display industry, especially in custom touch display projects, lead time is influenced by multiple factors that are not always visible from the outside.

Here, we’d like to walk through the real reasons behind “long lead times” from a manufacturer’s perspective.

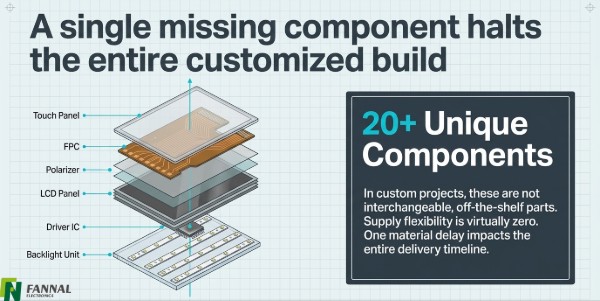

1. Too Many Components — One Missing Part Delays Everything

A display module may look compact, but its structure is highly complex.

A typical module includes:

• LCD panel

• Driver IC

• Polarizer

• Backlight unit

• FPC

• Touch panel (optional)

In total, nearly 20 different components are involved.

For companies like FANNAL, most projects are customized, not off-the-shelf. This means:

• Materials are not interchangeable

• Supply is not always flexible

• Any single component delay can hold up the entire order

To reduce uncertainty, we bring key processes in-house:

• Display side: panel cutting & cleaning, SMT, bonding, assembly, aging

• Touch side: sensor design, production, and lamination

This reduces dependency on external suppliers and improves control over quality and timing.

However, tighter control also means higher cost. In a differentiated market, stability always comes before cost.

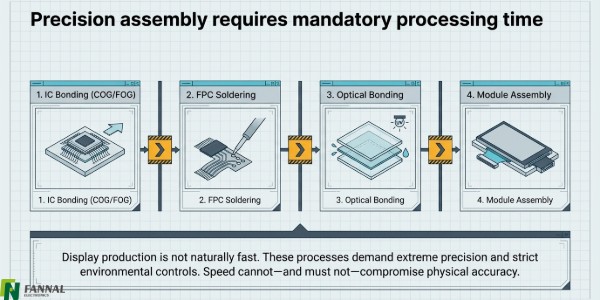

2. Displays Require Precision Manufacturing — And That Takes Time

Display production is not fast by nature.

Processes such as:

• IC bonding (COG/FOG)

• FPC soldering

• Optical bonding

• Module assembly

all require high precision and strict inspection control.

At multiple stages, 100% inspection is required, including:

• After glass processing

• After polarizer lamination

• After bonding

• Before and after optical bonding

• Before shipment

Not all steps can rely on AOI. Many still require manual inspection, which is time-consuming but necessary.

Every step is designed to eliminate risk before delivery, not after.

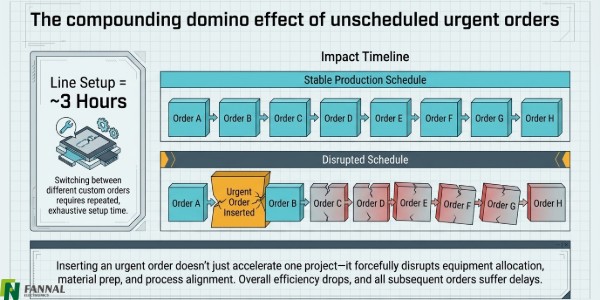

3. Production Scheduling Is Systematic — Not Flexible on Demand

From a customer perspective, inserting an urgent order may seem simple.

From a factory perspective, it is not.

Production planning is the central coordination system of manufacturing. Once a schedule is set:

• Equipment is allocated

• Materials are prepared

• Processes are aligned

In our case:

• A production line setup takes around 3 hours

• Switching between orders means repeated setup time

If an urgent order is inserted:

• Existing schedules are disrupted

• Efficiency drops significantly

• All other orders are affected

That’s why factories generally avoid urgent changes.

However, since we serve high-mix, low-volume customized markets, we’ve built:

• Multiple fully automated lines for stable production

• Additional semi-automated lines for samples and urgent small batches

This allows us to handle urgent requests without completely disrupting the system.

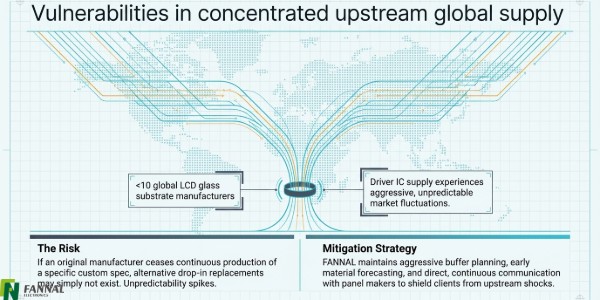

4. Upstream Supply Is Highly Concentrated

The display industry relies heavily on upstream suppliers.

For example:

• Fewer than 10 companies globally produce LCD glass substrates

• Driver IC supply can fluctuate

• Certain custom specs may not have continuous production

If the original manufacturer stops supplying a specific material:

• Alternatives may not exist

• Lead time becomes unpredictable

To manage this risk, we:

• Maintain close communication with panel makers and distributors

• Monitor supply conditions regularly

• Align with customers early on material planning

For critical projects, forecasting and buffer planning are essential.

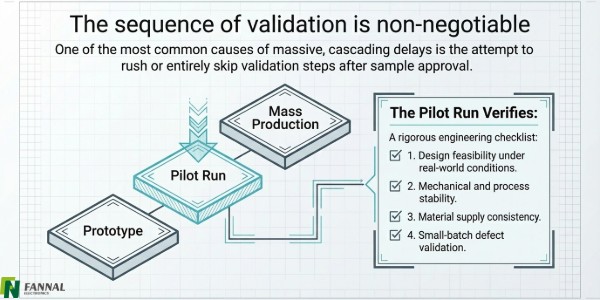

5. Skipping Steps (Prototype → Pilot → Mass Production) Creates Bigger Delays

One of the most common issues is rushing the process.

In some projects:

• Sample approval is quickly followed by mass production

• The pilot run (trial production) is skipped

This creates significant risk.

The purpose of a pilot run is to verify:

• Design feasibility

• Process stability

• Material consistency

• Small-batch validation

Skipping this step often leads to:

• Yield issues

• Rework

• Delivery delays

For such cases, we set up cross-functional project teams, involving:

• Engineering

• Process

• Quality

• Procurement

• Sales

to closely monitor production and reduce uncertainties.

Practical Suggestions for Customers

From our experience, lead time issues are often avoidable with better planning:

1. Plan earlier internally
Don’t wait until production is about to start to place the display order.

2. Keep communication active
Don’t place an order and wait silently. Ongoing updates help identify risks early.

3. Allow realistic production time
Rushing the process may save time initially, but often leads to greater delays later.

Final Thoughts

We fully understand how critical lead time is.

At FANNAL, we don’t treat “long lead time” as an excuse. Instead, we continuously optimize our internal processes while maintaining strict quality control.

Our goal is simple:

Deliver fast — but more importantly, deliver reliably.

Because in the end, consistency matters more than speed.
