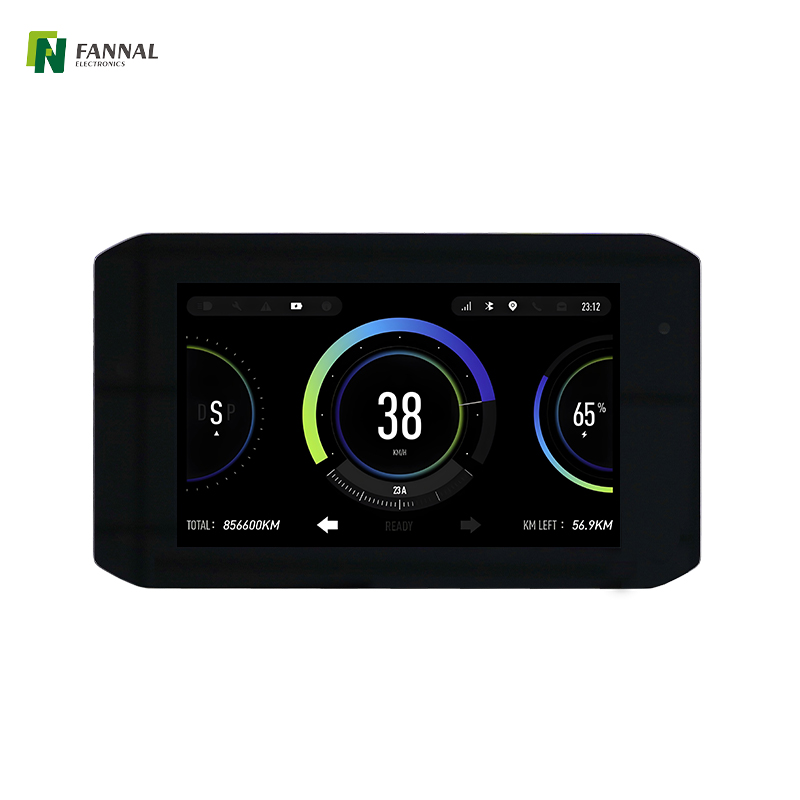

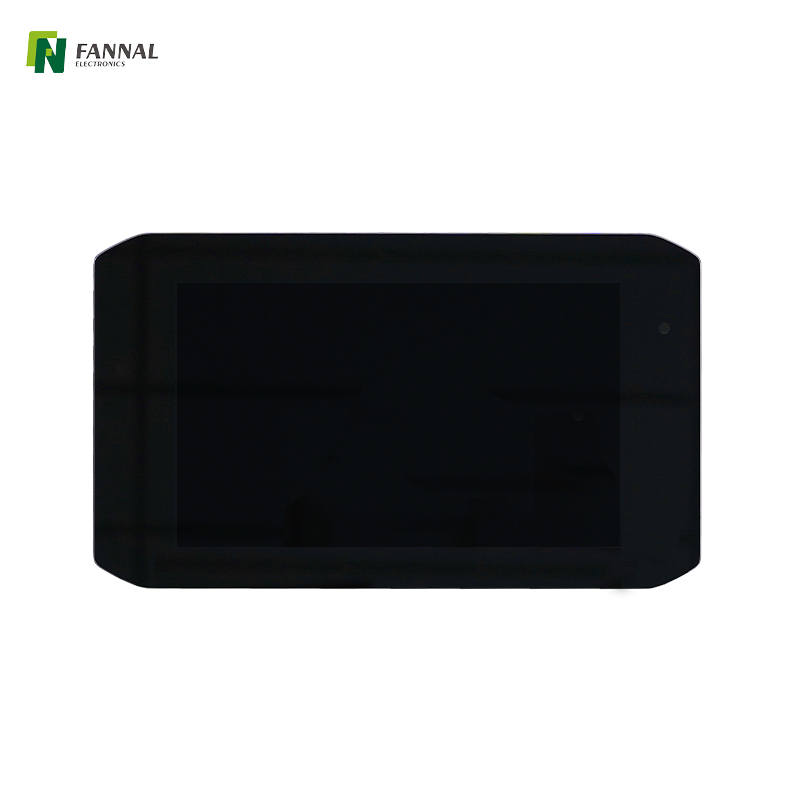

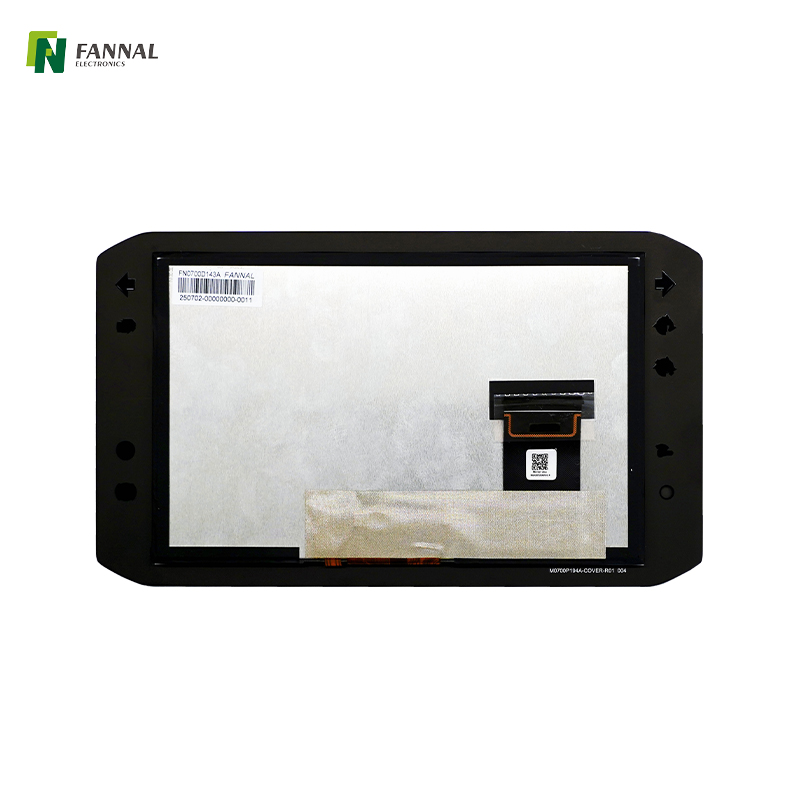

7-inch COVER with LCM Module High Performance Display Solution

Name: 7-inch COVER with LCM Module High Performance Display Solution
Brand: FANNAL
Rating: 5.0 (32 reviews)

Model:
FN0700194001A
Brand:
FANNAL
Cover OD (mm):
205.9x120
Display Interface:
RGB 24bit
Style:
High Brightness Display
Resolution:
800x480
Brightness(cd/m²):
1200

Quantity:
Availability:





Inquiry Add to Basket

High Performance Display Solution 7-inch COVER with LCM Module 7-inch high-brightness display

Product Features

Product Drawing

Specification

Add Ons

Product Application

The 7-inch COVER+ LCM module is a high-performance display solution designed for a wide range of applications. Featuring advanced display technology, robust build, and excellent visibility, it meets the demands of industrial, automotive, and consumer electronics markets.

Applications

The 7-inch COVER+ LCM module is ideal for use in:

Industrial Equipment: Rugged and reliable for harsh environments.
Automotive Displays: High brightness and wide temperature tolerance make it perfect for in-vehicle systems.
Medical Devices: Clear and durable for medical monitoring and diagnostics.
Consumer Electronics: Compact and vibrant for smart home devices and handheld gadgets.
Outdoor Displays: High luminance and all-angle viewability for kiosks, signage, and portable devices.

Why Choose the 7-inch COVER+ LCM Module?

This module combines durability, excellent display quality, and adaptability, making it a versatile solution across various industries. Its high brightness, rugged design, and superior clarity ensure it performs exceptionally, even under challenging conditions.

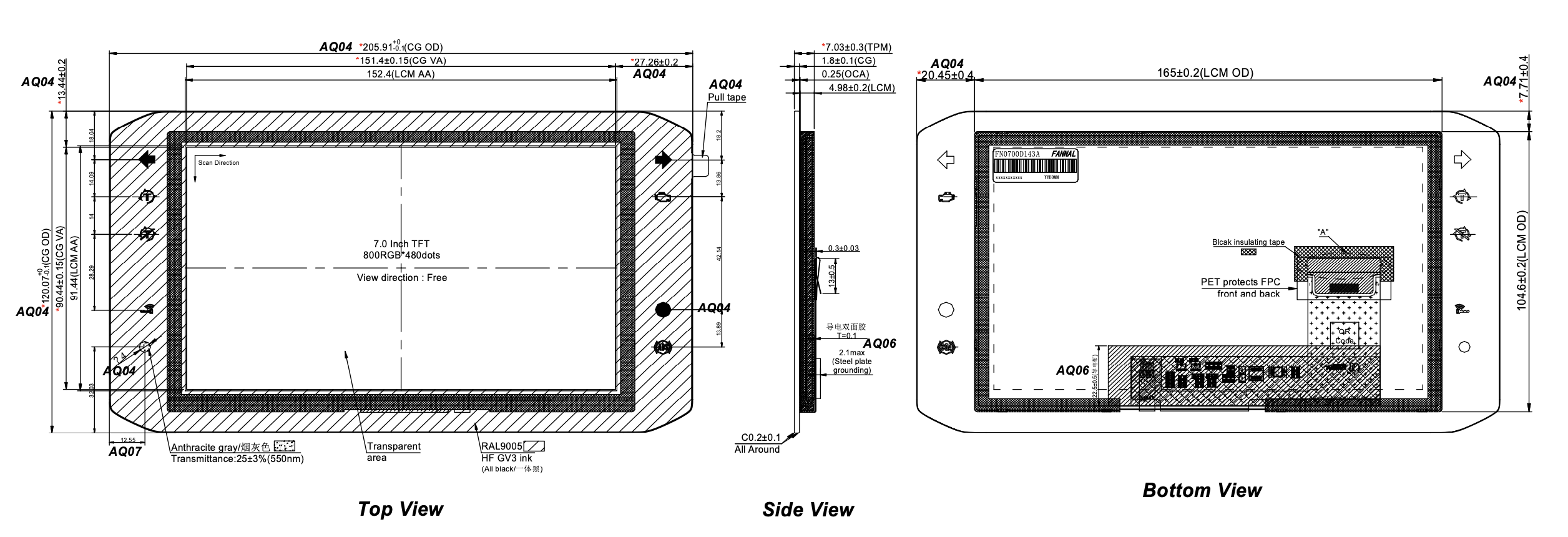

FN0700194001ACdrawing

General Specifications：

Size(inch):	7.0
Module:	FN0700194001A

TFT LCD
Resolution:	800x480
Brightness（cd/m²）:	1200
Display interface:	RGB 24bit
Panel type:	IPS

Cover
Cover type:	Special-shaped
Cover printing:	Anti-UV coating

Customization

Touch Panel: Featuring a custom cover lens and touch sensor, with expertly selected touch ICs. Configurations available in both COF (Chip on Flex) and COB (Chip on Board) for tailored solutions.

Bonding: Options include both air bonding and optical bonding, with professional selection managed by FANNAL to ensure optimal performance and clarity.

TFT Display: Developed in-house, this TFT display is sunlight-readable, operates across a broad temperature range, and incorporates IPS technology for superior viewing angles and color accuracy.

Add-ons: Available with a range of additional accessories to expand functionality.

Application

Industrial Control Systems: Providing a responsive interface for monitoring and control applications.
Medical Devices: Ensuring clear visuals and reliable touch input for diagnostic and patient monitoring equipment.
Automotive Displays: Ideal for in-car infotainment and navigation systems.
Consumer Electronics: Enhances user experience in tablets, smart home displays, and more.
Retail and Self-Service Kiosks: Creating an engaging and intuitive interface for customer interaction.
