7-inch Durability And Versatility Touch Display Module

Model:
FN07000187A
Cover OD (mm):
156.81x88.52x0.7
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Display Interface:
RGB 24bit
TP Interface:
USB+IIC
Resolution:
1024x600
Brightness(cd/m²):
340

Quantity:
Availability:





Inquiry Add to Basket

7 inch display 7 inch touchscreen 7 inch lcd 7 inch industrial display

Product Features

Product Drawing

Specification

Add Ons

Product Application

Looking for a display solution that delivers crystal-clear visuals, unmatched durability, and seamless touch functionality? Our 7-inch Display Module is engineered to exceed your expectations.

Why Choose This Display Module?

Vivid Clarity: With a 1024x600 resolution, experience sharp, vibrant images that bring your projects to life.
Responsive Touch: Enjoy a 10-point touch interface with USB + IIC connectivity for smooth and precise interaction.
Built to Last: Designed with 2.0mm cover lens thickness and optical bonding, ensuring durability and superior readability in any environment.
Optimal Brightness: A luminance of 340Typ guarantees exceptional visibility, even in challenging lighting conditions.
Wide Temperature Range: Operates reliably in extreme conditions, from -20°C to 70°C.

Trusted by Innovators Worldwide

Join thousands of professionals who rely on our display modules for their cutting-edge projects. From consumer electronics to industrial applications, we’ve got you covered.

Elevate your projects with the 7-inch Display Module that combines performance, durability, and versatility.

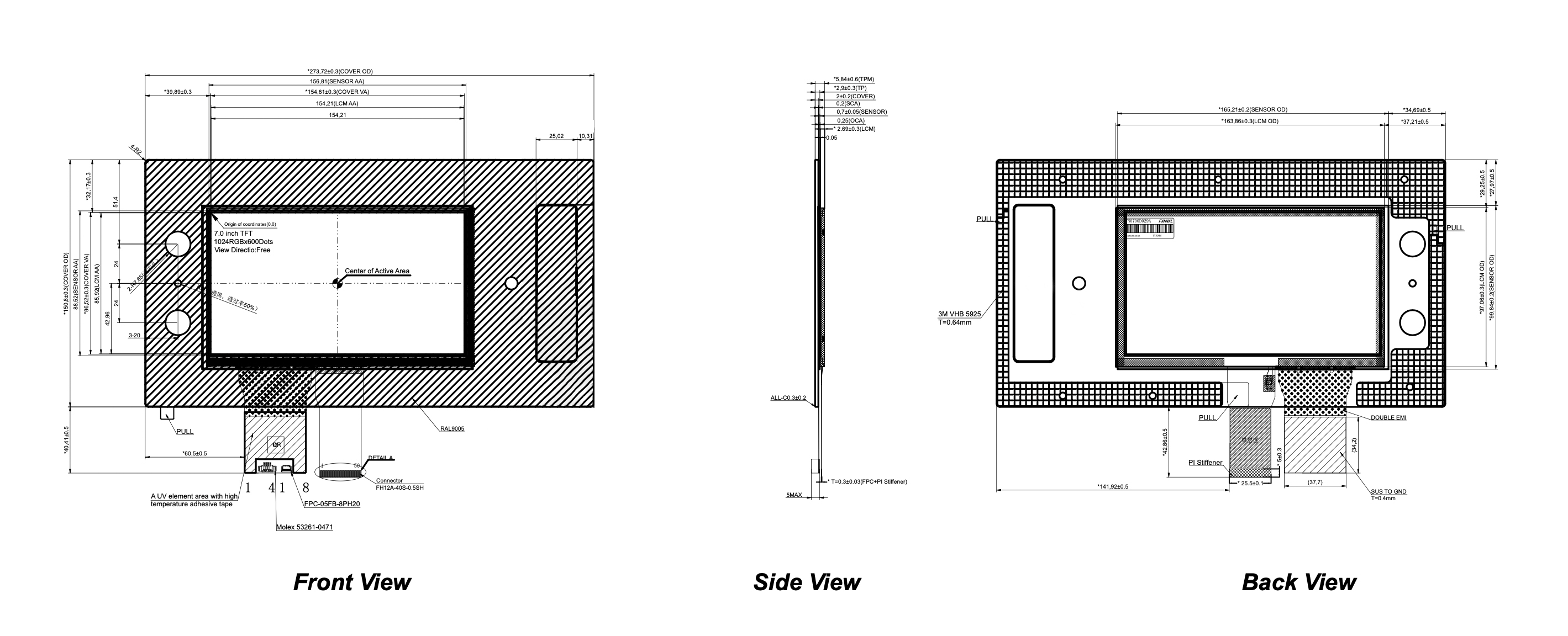

FN0700T187A drawing

General Specifications：

Size(inch):	7
Module:	FN07000187A

TFT LCD
Resolution:	1024x600
Brightness（cd/m²）:	340
Display interface:	RGB 24bit
Panel type:	IPS

Touch panel
Touch type:	Capacitive touch
TP VA (mm):	156.81x86.52
TPM Outline Size(mm):	273.72x150.8x5.84
TP Interface:	USB+IIC

Customization

COVER LENS:

Shape: cut in special shape, Printing: Silk printing/Ceramic printing, Material: PMMA/Glass, Thickness: 0.55mm~10.0mm, Surface treatment: AG, AR, AF, AB.

Sensor:

Sensor made by FANNAL,Narrow bezel design,Thickness selectable.

FPC:

Required shape available, Touch IC selectable, Interface selectable.

Bonding:

Air bonding/optical bonding, low reflection, All one black effect.

TFT Display:

In house manufacture/sunlight readable display/wide temperature display, IPS TFT display, Automotive grade display.

Add-on:

backlight board, AD board, wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
