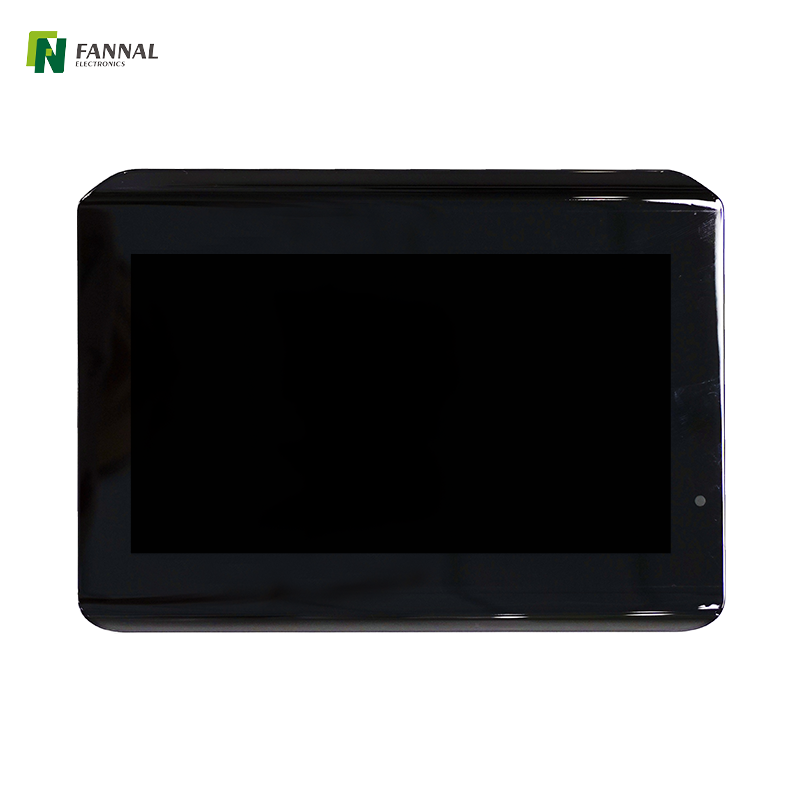

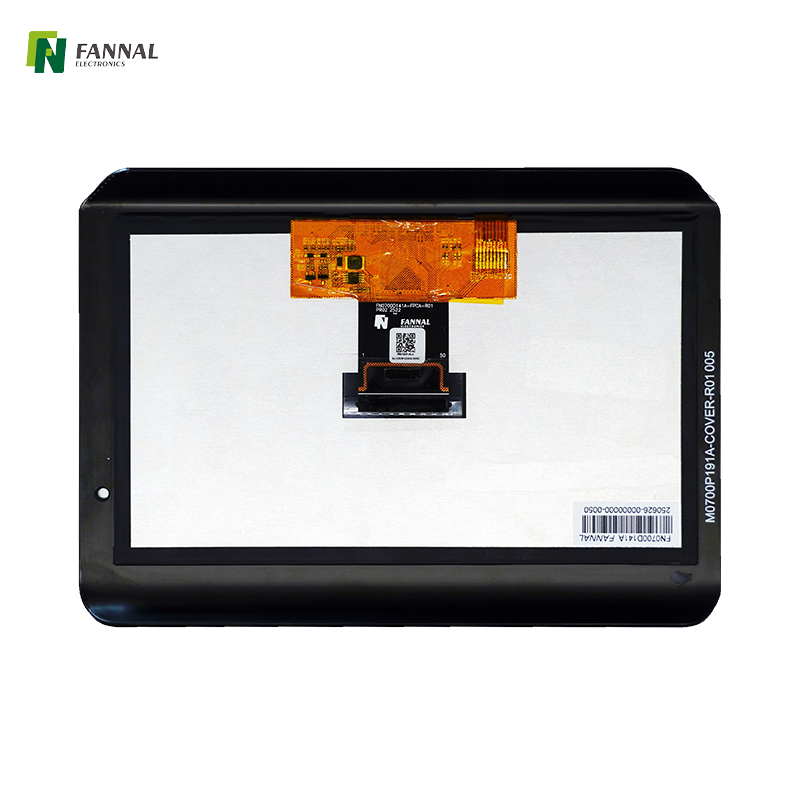

7-Inch curved cover and TFT design with advanced features

Name: 7-Inch curved cover and TFT design with advanced features
Brand: FANNAL
Rating: 5.0 (25 reviews)

Model:
FN0700191001A
Brand:
FANNAL
Cover OD (mm):
153.2(H)x84.9(V)
Display Interface:
RGB 24bit
Style:
High Brightness Display
Resolution:
1024×600
Brightness(cd/m²):
1200

Quantity:
Availability:





Inquiry Add to Basket

High Performance Display Solution 7-inch curved COVER with LCM Module 7-inch high-brightness display

Product Features

Product Drawing

Specification

Add Ons

Product Application

The 7-inch Curved COVER+ LCM module is a cutting-edge display solution designed to meet the demands of modern applications requiring high performance, durability, and aesthetic appeal. This display module combines a sleek curved TFT design with advanced features, making it ideal for a wide range of industries and use cases.

Key Features

Display Specifications

Screen Size: 7.0 inches (Diagonal)
Resolution: 1024(H) × 600(V)
Pixel Pitch: 0.1506(H) × 0.1432(V)
Active Area: 154.2(H) × 85.9(V)
View Area: 153.2(H) × 84.9(V)

Design & Build

Curved Cover Glass: Enhances aesthetics and usability.
Module Size: 183.9(W) × 131.0(H) × 7.58(D), compact and versatile for integration.
Display Mode: Normally Black, ensuring high contrast and vibrant colors.

Performance

Viewing Direction: ALL, offering a wide viewing angle for excellent visibility from any position.
Interface: RGB 24-bit, providing seamless integration and high-speed data transmission.
Operating Temperature: -30°C to 80°C, designed for extreme environments.
Storage Temperature: -30°C to 85°C, ensuring durability and reliability across a wide temperature range.

Why Choose the 7-Inch Curved COVER+ LCM Module?
This module combines premium aesthetics with robust performance, making it a top choice for industries requiring reliable and visually appealing display solutions. Its wide viewing angle, high resolution, and ability to perform in extreme conditions ensure that it meets the demands of both high-end and rugged applications.

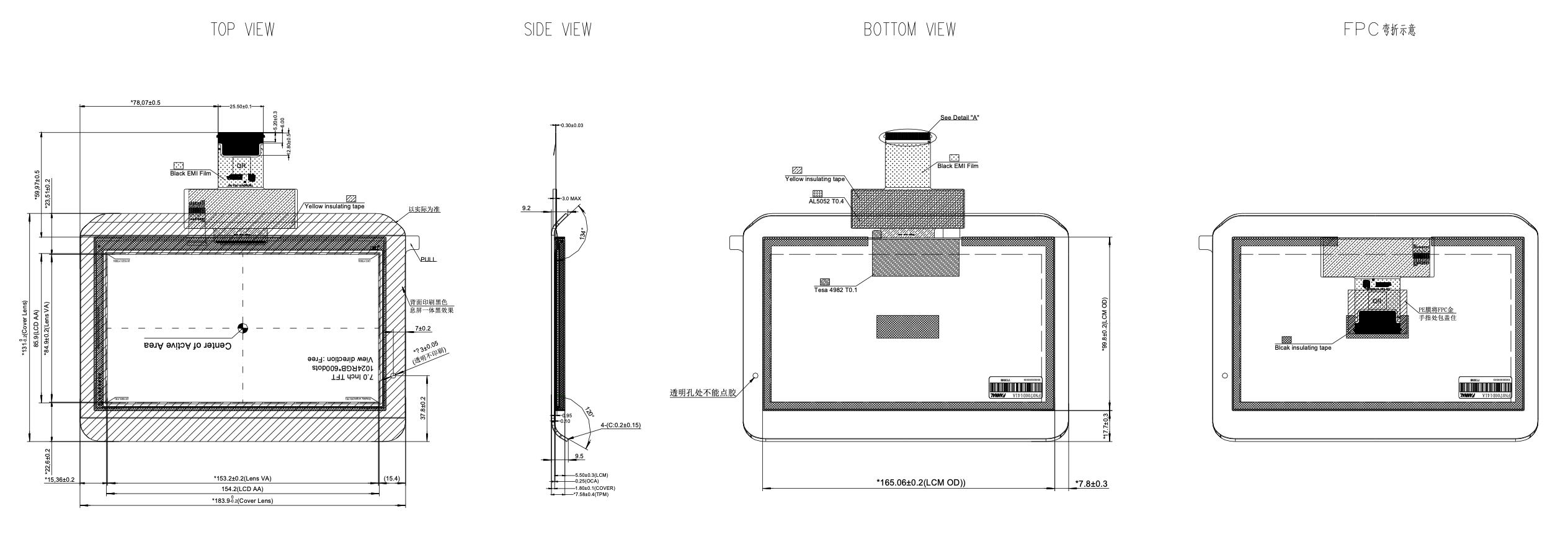

FN0700T191A drawing

General Specifications：

Size(inch):	7.0
Module:	FN0700191001A

TFT LCD
Resolution:	1024x600
Brightness（cd/m²）:	1200
Display interface:	RGB 24bit
Panel type:	IPS

Cover
Cover type:	curved cover
Cover printing:	Anti-UV coating

Customization

Touch Panel: Featuring a custom cover lens and touch sensor, with expertly selected touch ICs. Configurations available in both COF (Chip on Flex) and COB (Chip on Board) for tailored solutions.

Bonding: Options include both air bonding and optical bonding, with professional selection managed by FANNAL to ensure optimal performance and clarity.

TFT Display: Developed in-house, this TFT display is sunlight-readable, operates across a broad temperature range, and incorporates IPS technology for superior viewing angles and color accuracy.

Add-ons: Available with a range of additional accessories to expand functionality.

Applications

The 7-inch Curved COVER+ LCM module is designed to cater to a variety of industries, offering unmatched versatility:

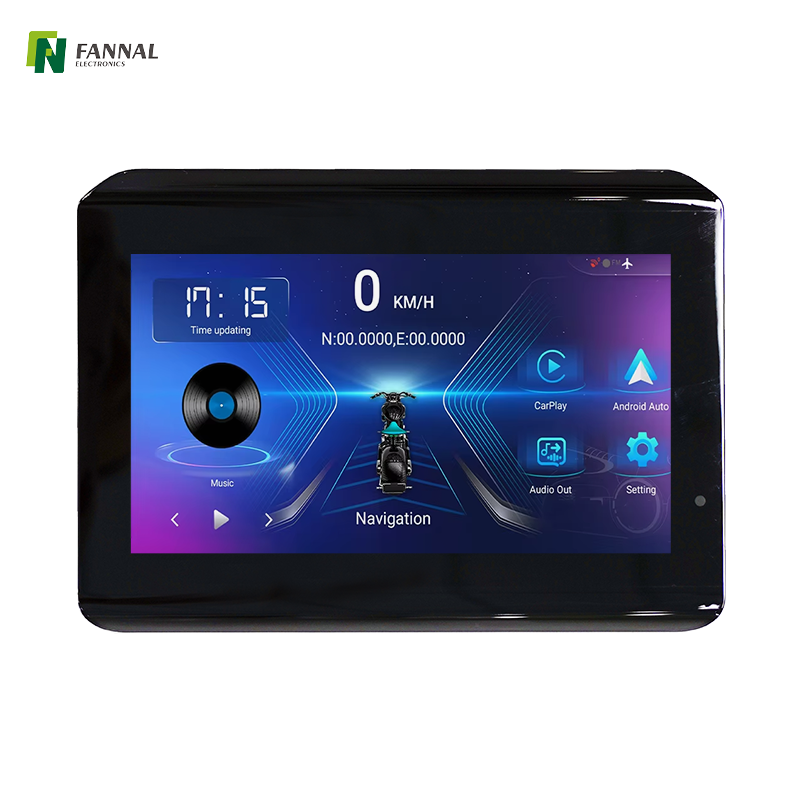

Automotive Displays: Ideal for dashboards, infotainment systems, and rear-seat entertainment.
Smart Home Devices: Perfect for control panels, smart mirrors, and interactive home displays.
Industrial Equipment: Suitable for HMI (Human-Machine Interface) displays in manufacturing and automation.
Consumer Electronics: Can be integrated into tablets, portable monitors, and gaming devices.
Medical Devices: Enhanced clarity and durability for diagnostic equipment and monitoring systems.
