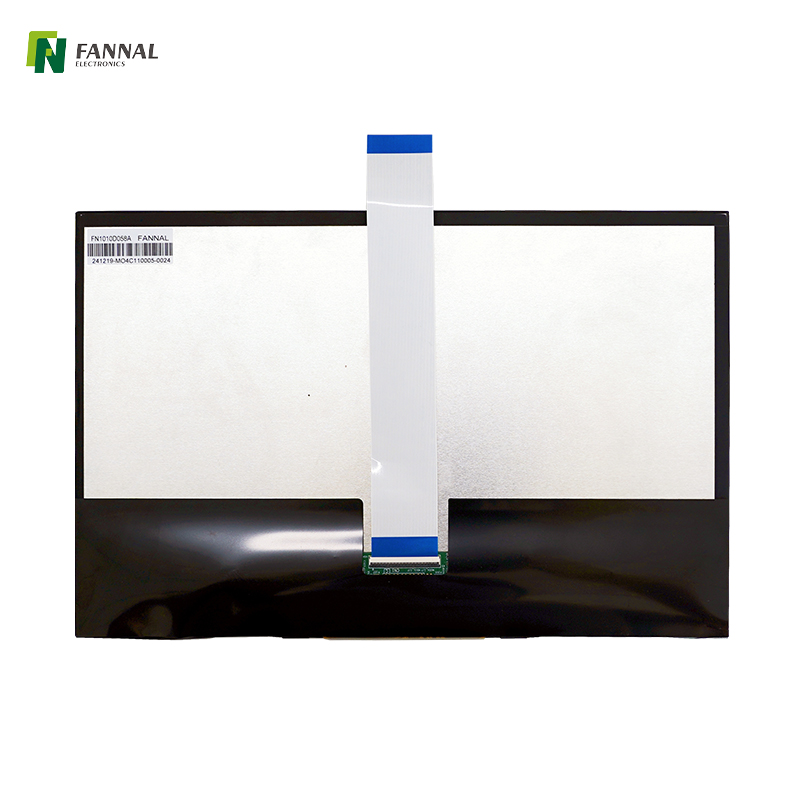

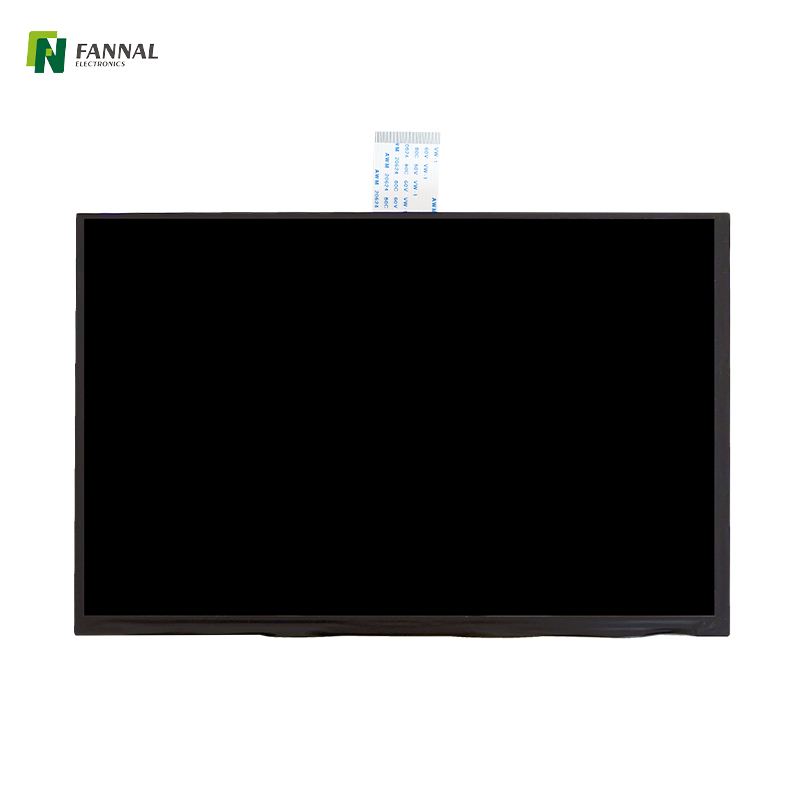

LVDS 10.1" TFT LCD Screen, High Brightness, Wide Viewing Angle

Model:
FN1010D058A
Operation Temp(℃):
-20~80
Storage Temp(℃):
-30~85
Resolution:
1920×1200
Direction:
ALL
Interface:
LVDS
Brightness(cd/m²):
1000
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

Outdoor LCD weatherproof outdoor LCD sunlight readable outdoor LCD outdoor LCD signage display portable outdoor LCD monitor industrial grade outdoor LCD

Product Features

Product Drawing

Specification

Add Ons

Product Application

详情页宽温

The LVDS 10.1" TFT LCD screen is a high-performance display designed for a variety of applications, offering exceptional brightness and wide viewing angles.

Key Features

High Brightness
Wide Viewing Angle
LVDS Interface
Versatility

Applications

Digital signage
Automotive displays
Medical imaging
Industrial control panels

This TFT LCD screen combines advanced technology with practical design, making it an excellent choice for demanding visual applications.

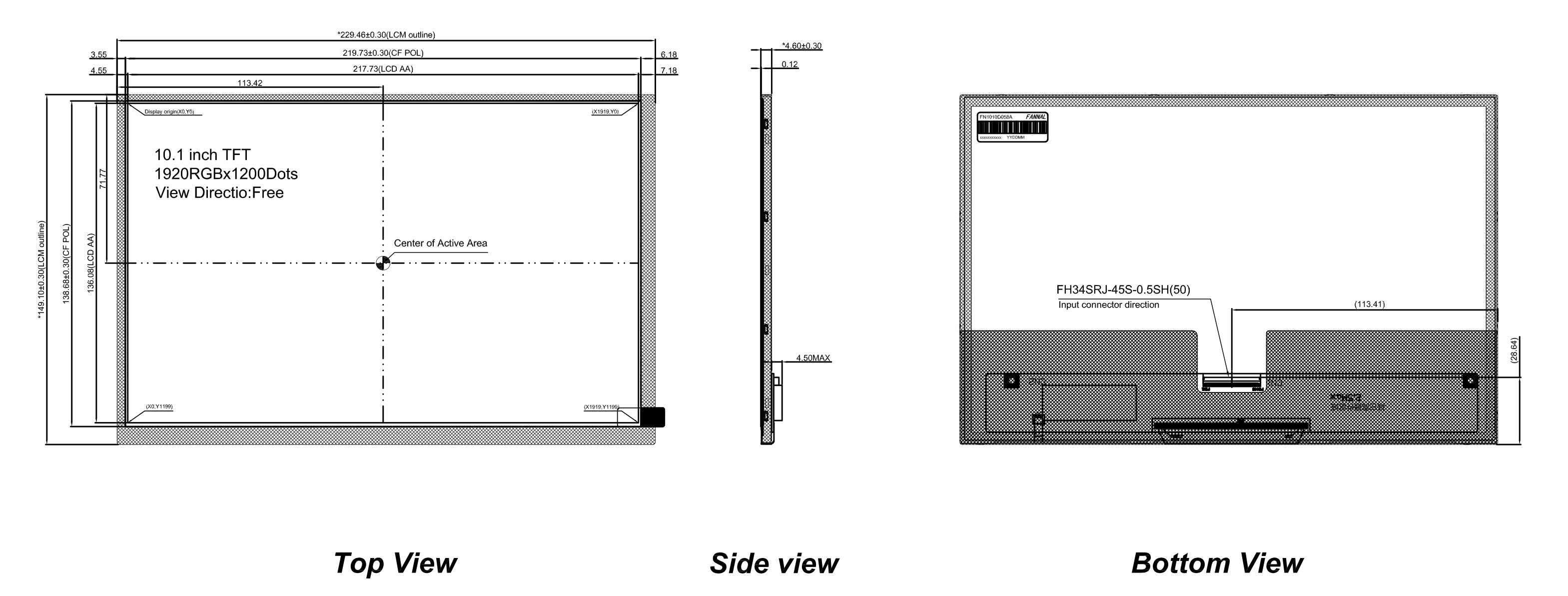

FN1010D058A drawing

General Specifications：

LCD size(inch):	10.1 (Diagonal)
Resolution:	1920(H)×1200(V)
Pixel Pitch:	0.1134(H)x0.1134(V)
Active Area(mm):	217.728(H)×136.08(V)
Module Size(mm):	229.46(W)x149.1(H) ×4.6(D)
Display Mode(mm):	Normally Black, Transmissive
Interface:	LVDS
View Direction:	ALL
Luminance(cd/m2):	1000(Typ.)
Operating Temperature(°C):	-20~+80
Storage Temperature(°C):	-30~+85

Interface:

Pin No.	Symbol	I/O	Description

1-3	VLEDIN 12V	P	Power for LED backlight.

4	PWM	P	PWM For LED.

5	LED EN	I	LED enable signal.

6	GND	P	Ground.

7	ERXIN3P	I	LVDS Positive differential data(Even data).

8	ERXIN3N	I	LVDS Negative differential data(Even data).

9	GND	P	Ground.

10	ERXIN2P	I	LVDS Positive differential data(Even data).

11	ERXIN2N	I	LVDS Negative differential data(Even data).

12	GND	P	Ground.

13	ERXCLKP	I	LVDS Positive differential clock signal(Even clock).

14	ERXCLKN	I	LVDS Negative differential clock signal(Even clock).

15	GND	P	Ground.

16	ERXIN1P	I	LVDS Positive differential data(Even data).

17	ERXIN1N	I	LVDS Negative differential data(Even data).

18	GND	P	Ground.

19	ERXIN0P	I	LVDS Positive differential data(Even data).

20	ERXIN0N	I	LVDS Negative differential data(Even data).

21	GND	P	Ground.

22	ORXIN3P	I	LVDS Positive differential data(Odd data).

23	ORXIN3N	I	LVDS Negative differential data(Odd data).

24	GND	P	Ground.

25	ORXIN2P	I	LVDS Positive differential data(Odd data).

26	ORXIN2N	I	LVDS Negative differential data(Odd data).

27	GND	P	Ground.

28	ORXCLKP	I	LVDS Positive differential clock signal(Odd clock).

29	ORXCLKN	I	LVDS Negative differential clock signal(Odd clock).

30	GND	P	Ground.

31	ORXIN1P	I	LVDS Positive differential data(Odd data).

32	ORXIN1N	I	LVDS Negative differential data(Odd data).

33	GND	P	Ground.

34	ORXIN0P	I	LVDS Positive differential data(Odd data).

35	ORXIN0N	I	LVDS Negative differential data(Odd data).

36	GND	P	Ground.

37	IIC_SDA	I	OTP_SDA.

38	IIC_SCL	I	OTP_SCL.

39	NC	-	No connection.

40	EEPEN	I	No connection.

41-45	VDDIN	P	Power supply VDDIN=3.3V(Typ.)

Electrical Characteristics:

Parameter	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VDD	2.3	3.3	3.6	V
	VRP	--	--	300	mV
Power Supply current	IDD	--	300	360	mA
Power Consumption	PLCD	--	1.0	1.2	W
Rush current	IRUSH	--	--	3.0	A
Input logic high voltage	VIH	2.7	--	3.3	V
Input logic low voltage	VIL	0	--	0.5	V
Output logic high voltage	VOH	2.7	--	3.3	V
Output logic low voltage	VOL	0	--	0.5	V

Customization

CTP

Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board

We can provide complete accessories, including backlight board, AD Board and wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
