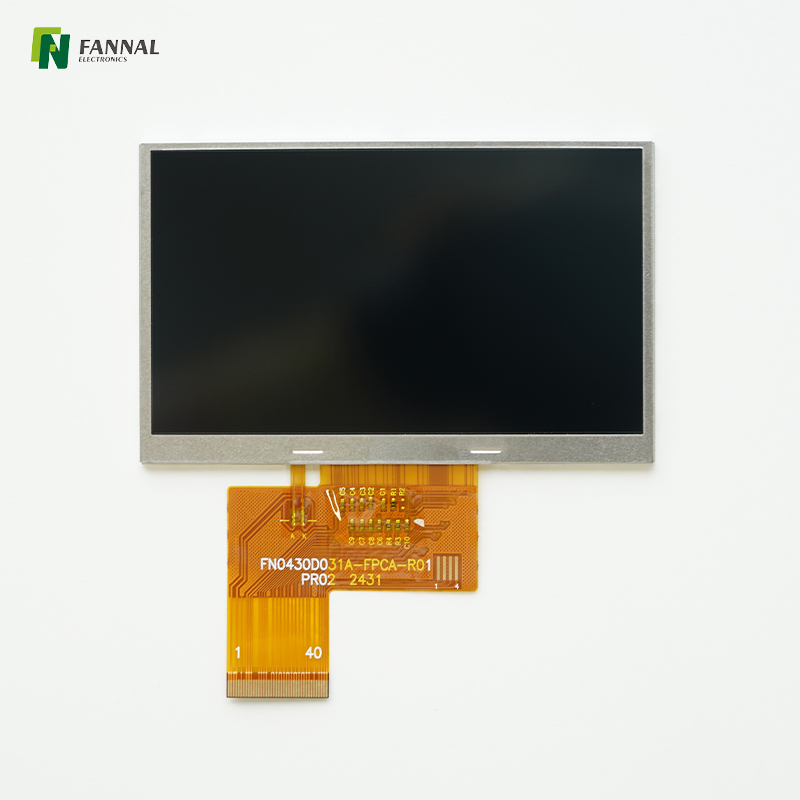

4.3 Inch TFT Display high brightness display 800*480 resolution IPS LCD

4.3-inch Industrial TFT LCD Displays

Model:
FN0430D031A
Resolution:
800*480
Interface:
LVDS
Brightness(cd/m²):
850
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

high brightness display

Product Features

Product Drawing

Specification

Add Ons

Product Application

详情页IPS工控

4.3 inch TFT display, 800×480, LVDS, Industrial LCD Screen, 850cd/m²

This 4.3 inch is developed with a standard 800x480 high-resolution IPS screen and LVDS interface. Whether it is integrated into industrial Human-Machine Interface (HMI) systems, used as a monitor for embedded PCs, or paired with IoT control systems, the screen performs reliably in various environments. Its versatility ensures that it can fit into smart home automation systems, kiosks, or digital dashboards for automobiles, delivering an optimal viewing experience. Supporting advanced multi-touch technology, the panel enables gestures like pinch-to-zoom and swipe, enhancing user engagement and interactivity. It is ideal for educational tools, point-of-sale systems, and customer service applications, where quick and intuitive touch responses are essential. With its responsive touch capabilities, this panel improves workflow efficiency and enriches the overall user experience.

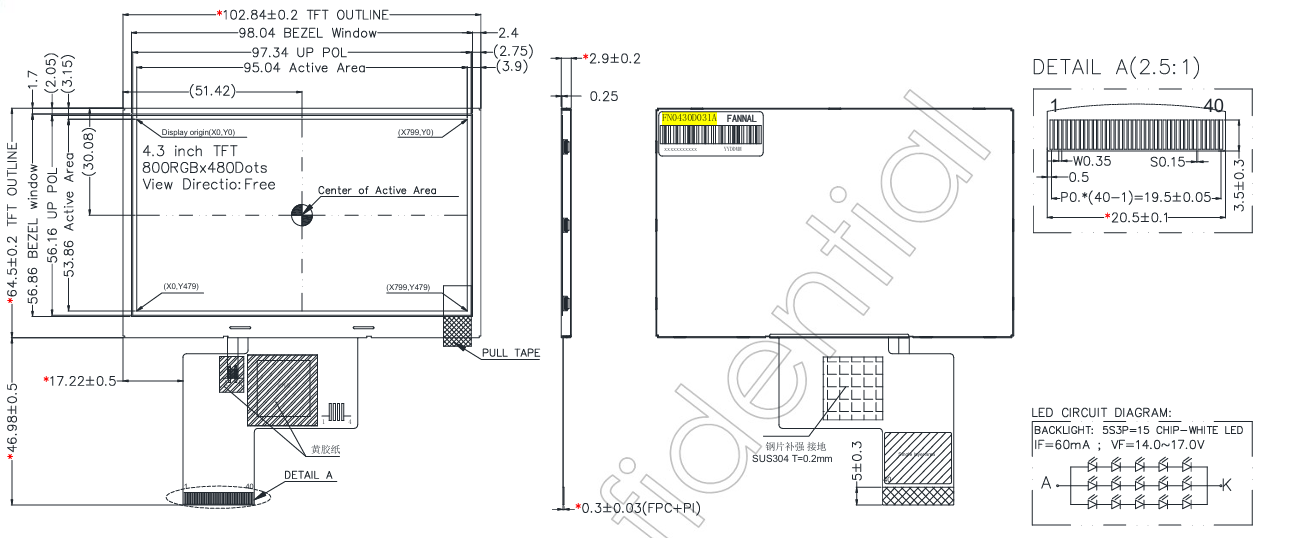

屏幕截图 2024-10-02 182712

General Specifications：

LCD size(inch):	4.3 (Diagonal)
Resolution:	800(H)×480(V)
Pixel Pitch:	0.1188(H)x0.1122(V)
Active Area(mm):	95.04(H)×53.856(V)
Module Size(mm):	102.84(W)x64.5(H) ×2.9(D)
Display Mode(mm):	Normally Black, Transmissive
Interface:	LVDS
View Direction:	ALL
Luminance(cd/m2):	850(Typ.)

Interface:

Pin No.	Symbol	I/O	Description
1-2	LEDK	P	Power for LED backlight(Cathode).
3-4	LEDA	P	Power for LED backlight(Anode).
5	NC	-	No connection.
6	GND	-	Ground.
7	NC	-	No connection.
8	VDDI	P	IO supply voltage.
9	VDD	P	Supply analog voltage.
10	GND	P	Ground.
11-12	NC	-	No connection.
13	SCL	I	Pixel clock input signal.
14	SDA	I	Serial data input/Output signal.
15	CS	I	Chip selection signal.
16	GND	P	Ground.
17	NC	-	No connection.
18	RXCLKN	I	LVDS Negative clock signal.
19	RXCLKP	I	LVDS Positive clock signal.
20	GND	P	Ground.
21	RXIN0N	I	LVDS Negative differential data signal.
22	RXIN0P	I	LVDS Positive differential data signal.
23	GND	P	Ground.
24	RXIN1N	I	LVDS Negative differential data signal.
25	RXIN1P	I	LVDS Positive differential data signal.
26	GND	P	Ground.
27	RXIN2N	I	LVDS Negative differential data signal.
28	RXIN2P	I	LVDS Positive differential data signal.
29	GND	P	Ground.
30	RXIN3N	I	LVDS Negative differential data signal.
31	RXIN3P	I	LVDS Positive differential data signal.
32	GND	P	Ground.
33	RESET	I	Reset signal input.
34	NC	-	No Connection.
35	GND	P	Ground.
36	NC	-	No Connection.
37	XR/NC	-	No Connection.
38	YD/NC	-	No Connection.
39	XL/NC	-	No Connection.
40	YU/NC	-	No Connection.

Electrical Characteristics:

Parameter	Symbol:	Min.	Typ.	Max.	Unit
Forward Voltage	VF	14.0	15.5	17.0	V
Forward Current	IF	-	-	60	mA
LED Lifetime	-	30K			Hrs

Customization

CTP

Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board

We can provide complete accessories, including backlight board, AD Board and wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
